Minimum order quantity: 1set
Price: 4000-6000 USD
Payment method: T/T
Supply capacity: 1-10 sets 15 days/11-20 sets 25 days
Delivery period: 15-25 days to ship
Regular packaging: Single package size: 3.3*1.3*1.4m
Categories: Model F
| 配置详细信息 Configuration details | |||||
| 关键部件 The key components |
|||||
| 底盘 Chassis |
高强度碳钢 high strength carbon steel |
||||

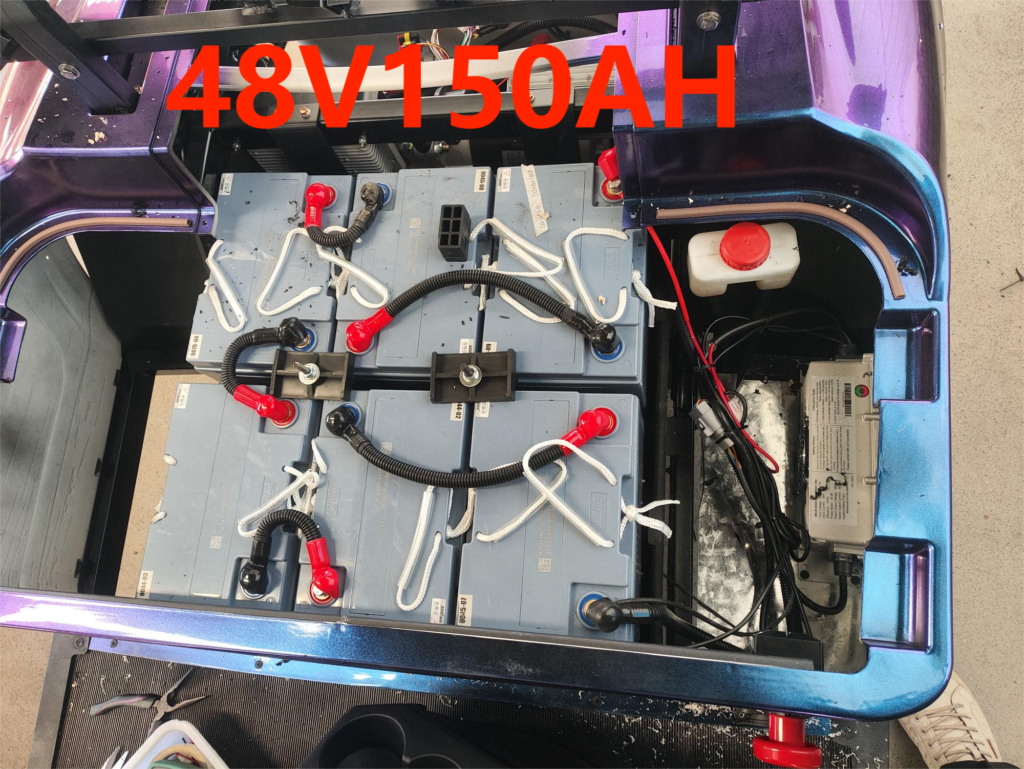

| 电池 Battery |
48V150AH铅酸电池 48V 150AH lead-acid battery (Maintenance-free gel battery) |
||||
| 电机 Motor |
AC, 浦益希4KW AC,PUYIXI motor 4KW |
||||

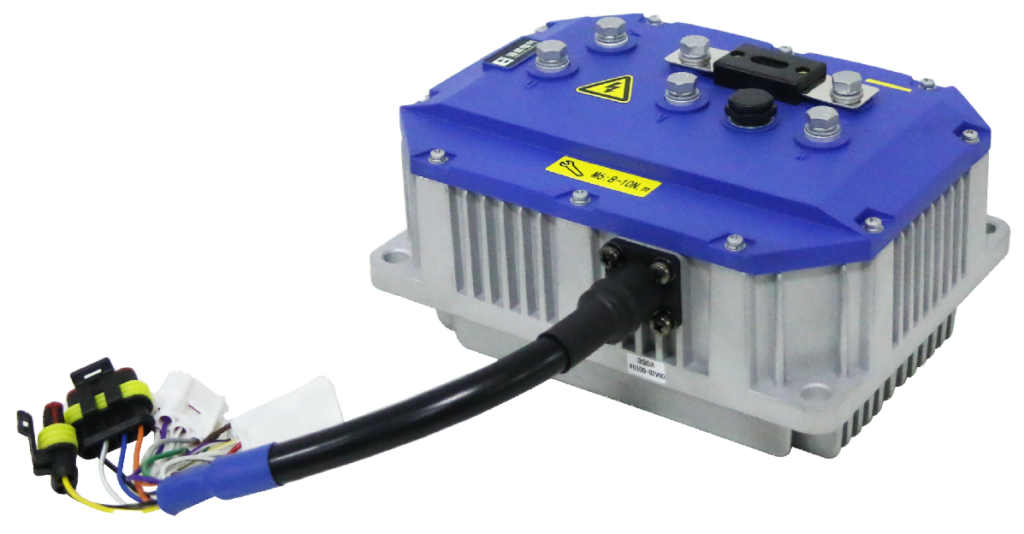

| 控制器 controller |
海格 全智能控制器 HERCULES Fully intelligent controller |
||||
| 参数 parameters |
|||||
| 载客量 passenger capacity |
2 | ||||
| 续航里程（基于最高车速） Range (based on top speed) |
70-80KM | ||||
| 充电时间 charging time |
8h | ||||
| 最高速度 top speed |
35km/h (Adjustable) | ||||
| 最大爬坡度 Maximum Climbing Degree |
25° | ||||
| 尺寸 sizes |
|||||
| 整车尺寸(mm) Vehicle size (mm) |
2400*1200*1780 | ||||
| 最小离地间隙 (mm) Minimum ground clearance (mm) |
120 | ||||
| 轴距 (mm) Wheelbase (mm) |
1680 | ||||
| 前轮距 (mm) Front wheelbase (mm) |
720 | ||||
| 后轮距 (mm) Rear wheelbase (mm) |
820 | ||||
| 车身 body |
|||||
| 车身 body |
PP 硬塑前车身 + PP 硬塑后车身 PP hard plastic front body + PP hard plastic rear body |
||||
| 顶棚 ceiling |
工程硬塑 Engineering hard plastic |
||||
| 方向盘 steering wheels |
聚氨酯发泡 polyurethane foam |
||||

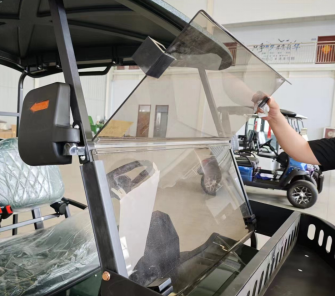

| 挡风玻璃 windshield |
亚克力可折叠玻璃 Foldable Acrylic |
||||
| 顶棚支撑 ceiling support |
钢制支架 steel bracket |
||||
| 安全带 seat belt |
四座两点式安全带 Four-seat two-point seat belts |
||||

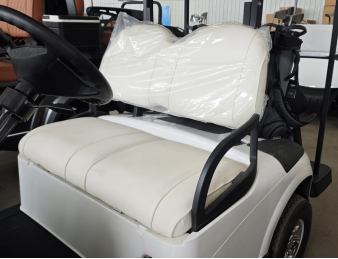

| 座椅 seat |
人造皮革 artificial leather |
||||
| （1）靠背和坐垫 (1) Backrest and seat cushion |
防水座椅 Waterproof seat |
||||
| （2）扶手 (2) Handrail |
黑色PP硬塑 Black PP hard plastic |
||||
| （3） 底壳 (3) Bottom shell |
PP硬塑 PP hard plastic |
||||
| 地垫 carpet |
防滑地垫 Rubber anti-slip floor mat |
||||
| 杯托 Coaster |
4 | ||||
| 轮眉 wheel eyebrow |
PP硬塑 PP hard plastic |
||||
| 电控系统 Electronic control system |
|||||

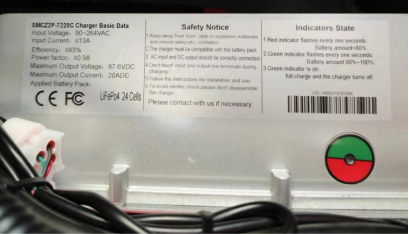

| 充电器 charger |
萨美特智能充电器 SUMMIT Smart charger  |
||||
| 驾驶转向系统 driving steering system |
|||||
| 车辆转向系统 vehicle steering system |
双输出齿条方向机 Dual output rack and pinion steering gear |
||||
| 刹车系统 Brake system |
后轮鼓刹油刹 Four-wheel disc brake |
||||
| 悬架系统 Suspension System |
前: 麦弗逊式独立悬架 Front: MacPherson strut independent suspension 后: 托臂悬挂 Rear：corbel suspension |
||||
| 轮胎 tires |
8寸 橡胶轮胎 钢制轮毂 8 inch rubber tires steel wheels |
||||
| 车身颜色 the color of car |
所有常规色可选 All regular colors available website：www.ralcolor.com |
||||
