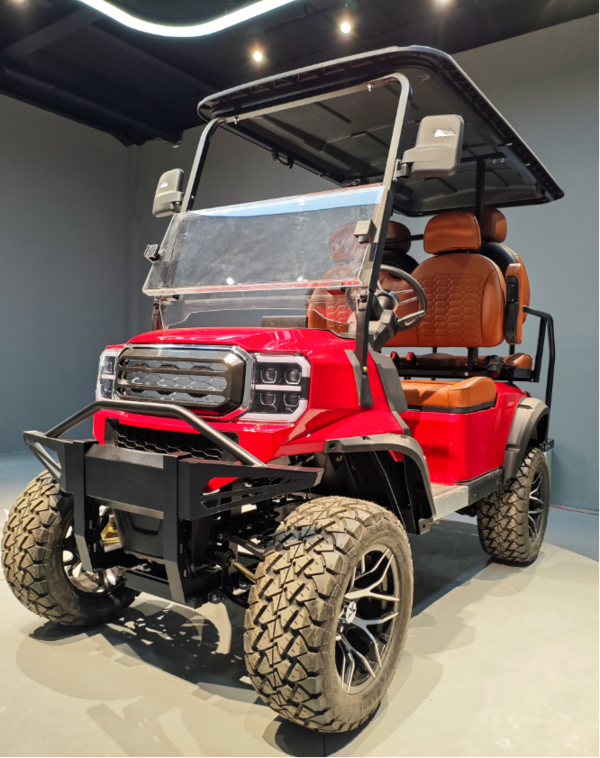

Type KG 4*4 drive golf cart

分类： Model G

立即联系

产品描述

1	Product Model	型号 KG 2+2 人座高尔夫球车
2	Picture
3	The key components
4	Chassis	High strength carbon steel

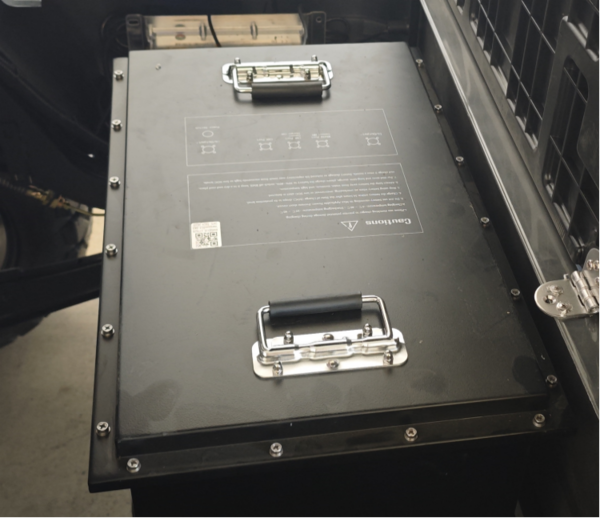

5	Battery	48V 150AH lithium battery
6	Motor	AC,PUYIXI motor 4KW
7	controller	HERCULES Fully intelligent controller
8	parameters
9	passenger capacity	4
10	Range (based on top speed)	80-90KM
11	charging time	8h
12	top speed	40km/h (Adjustable)
13	Maximum Climbing Degree	25°
14	sizes
15	Vehicle size (mm)	290012502000
16	Minimum ground clearance (mm)	240
17	Wheelbase (mm)	1680
18	Front wheelbase (mm)	720
19	Rear wheelbase (mm)	820
20	body
21	body	PP hard plastic front body + PP hard plastic rear body
22	ceiling	Engineering hard plastic

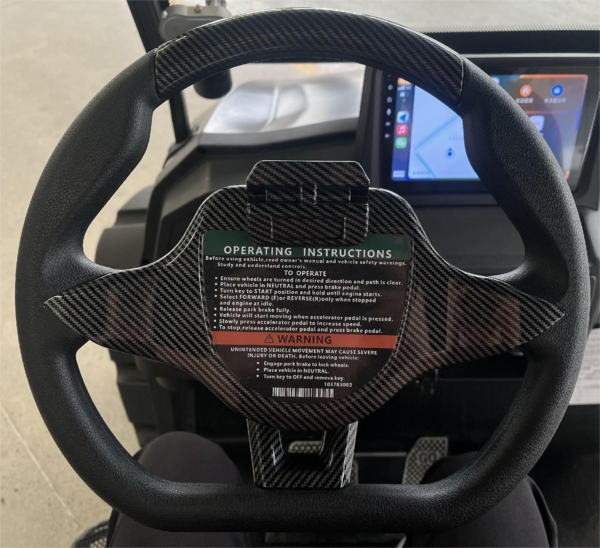

23	steering wheels	polyurethane foam+ Carbon fiber pattern decoration
24	windshield	Foldable Acrylic
25	ceiling support	steel bracket
26	seat belt	Four-seat two-point seat belts

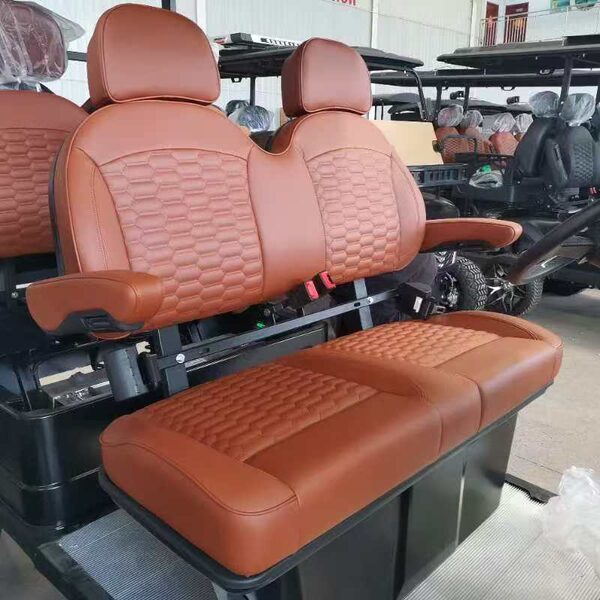

27	seat	artificial leather
28	(1) Backrest and seat cushion	luxury seat with headrest
29	(2) Handrail	Black PP hard plastic
30	(3) Bottom shell	PP hard plastic
31	carpet	Rubber anti-slip floor mat

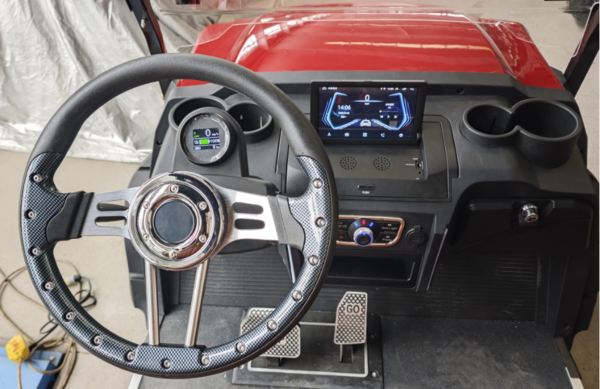

32	dash board	PP engineering hard plastic forward/backward switch Bluetooth screen mirroring multi-function software application reverse image

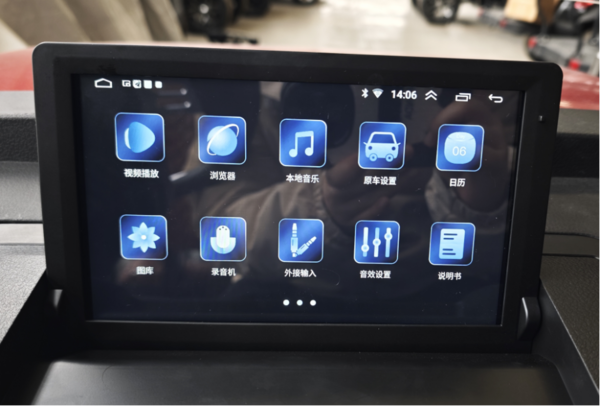

33	display	8-inch Android multimedia display
34	USB Port	yes
35	Carplay	yes
36	Vin number	yes
37	杯托 Coaster	4
38	wheel eyebrow	PP hard plastic
39	Electronic control system
40	Lighting system and speakers	2 headlights, 2 front turn signals, front LED lights, 2 LED taillights (each taillight consists of 1 brake light and 1 turn signal), horn.
41	reverse alarm	yes
42	Speaker	yes

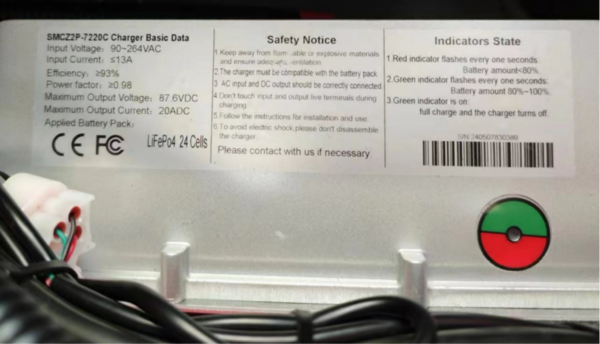

43	charger	SUMMIT Smart charger
44	driving steering system

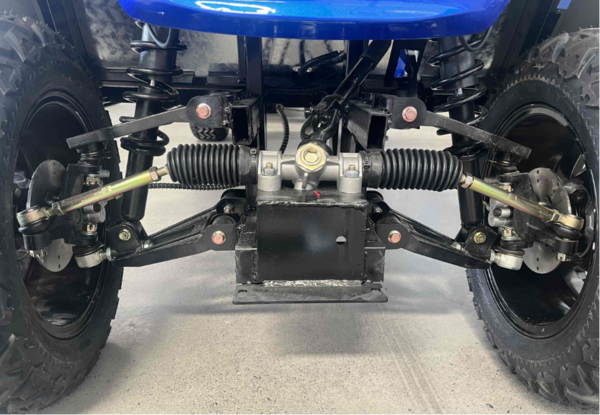

45	vehicle steering system	Dual output rack and pinion steering gear
46	Brake system	Four-wheel disc brake
47	Suspension System	Front: double wishbone suspension Rear：corbel suspension

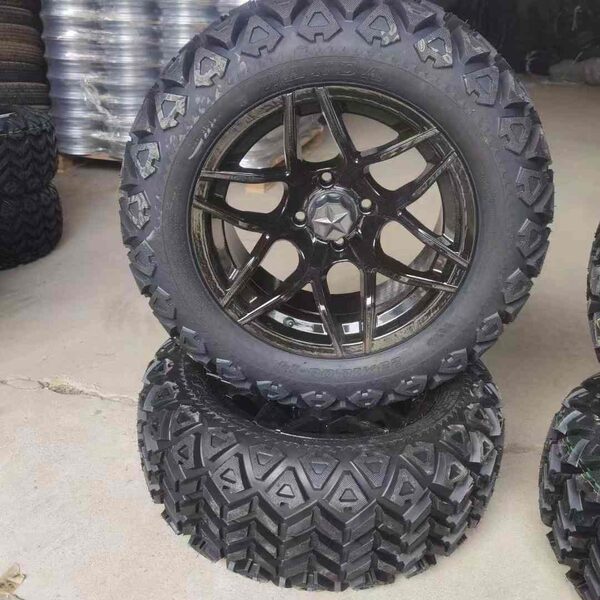

48	tires	14 inch rubber tires aluminum alloy wheels
49	the color of car	All regular colors available website：www.ralcolor.com
