| 1 | Product Model | Voiturette de golf 2 places de type KF | ||||
| 2 | picture |  |
||||
| 3 | The key components | |||||
| 4 | Chassis | High strength carbon steel | ||||

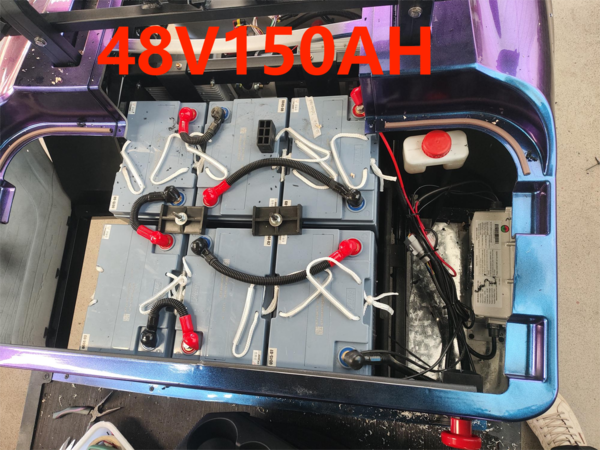

| 5 | Battery | 48V150AH
48V 150AH lead-acid battery
(Maintenance-free gel battery) |
||||

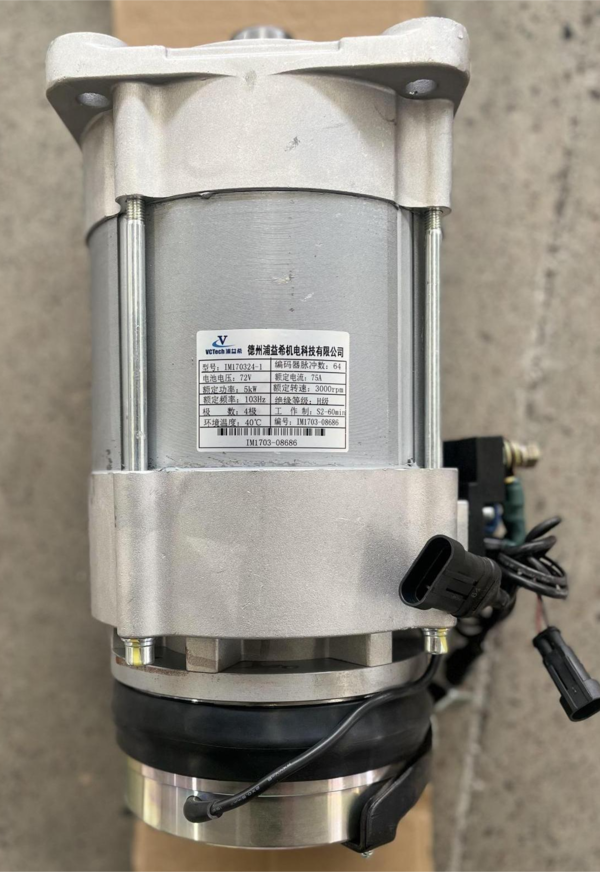

| 6 | Motor | AC, Pu Yixi4KW
AC,PUYIXI motor 4KW |
||||
| 7 | Controller | HERCULES Fully intelligent controller
 |
||||
| 8 | Parameters | |||||
| 9 | passenger capacity | 2 | ||||
| 10 | Range (based on top speed) | 70-80KM | ||||
| 11 | charging time | 8h | ||||
| 12 | top speed | 35km/h (Adjustable) | ||||
| 13 | Maximum Climbing Degree | 25° | ||||
| 14 | sizes | |||||
| 15 | Vehicle size (mm) | 2400*1200*1780 | ||||
| 16 | Minimum ground clearance (mm) | 120 | ||||
| 17 | Wheelbase (mm) | 1680 | ||||
| 18 | Front wheelbase (mm) | 720 | ||||
| 19 | Rear wheelbase (mm) | 820 | ||||
| 20 | body | |||||
| 21 | body | PP hard plastic front body + PP hard plastic rear body | ||||
| 22 | ceiling | Engineering hard plastic | ||||
| 23 | steering wheels | polyurethane foam | ||||

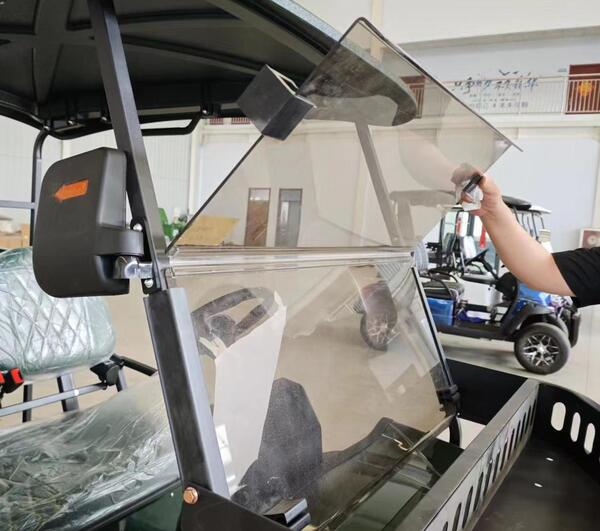

| 24 | windshield | Foldable Acrylic
 |
||||
| 25 | ceiling support | steel bracket | ||||
| 26 | seat belt | Four-seat two-point seat belts | ||||

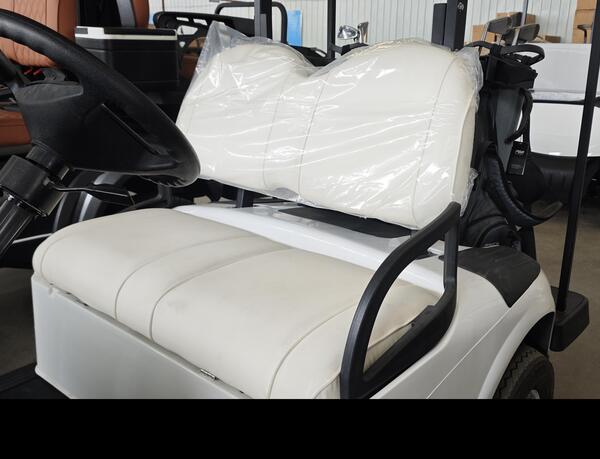

| 27 | seat | artificial leather | ||||
| 28 | (1) Backrest and seat cushion | Waterproof seat
 |
||||

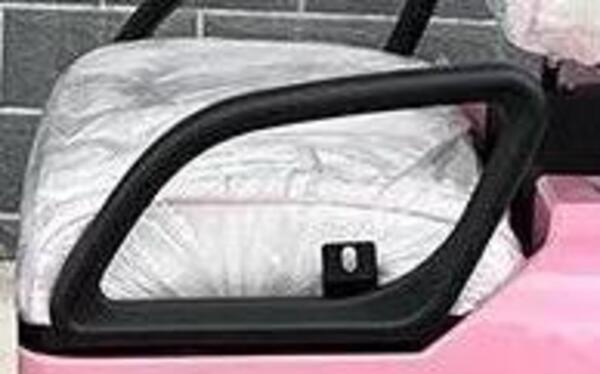

| 29 | (2) Handrail | Black PP hard plastic
 |
||||
| 30 | (3) Bottom shell | PP hard plastic | ||||
| 31 | carpet | Rubber anti-slip floor mat | ||||
| 37 | Coaster | 4 | ||||
| 38 | wheel eyebrow | PP hard plastic | ||||
| 39 | Electronic control system | |||||

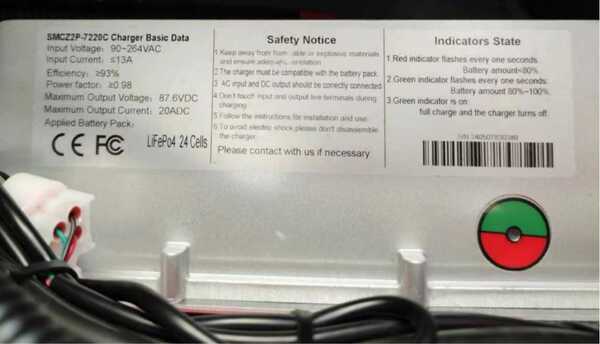

| 43 | charger | SUMMIT Smart charger
 |
||||
| 44 | driving steering system | |||||
| 45 | vehicle steering system | Dual output rack and pinion steering gear | ||||
| 46 | Brake system | Four-wheel disc brake | ||||
| 47 | Suspension System | Front: MacPherson strut independent suspension Rear：corbel suspension | ||||
| 48 | Pneus | 8 inch rubber tires steel wheels | ||||
| 49 | la couleur de la voiture | All regular colors available website：www.ralcolor.com | ||||
