Type KF 1-seater golf cart

立即联系

1	Product Model	型号 KF 2 人座高尔夫球车
2	picture
3	The key components
4	Chassis	High strength carbon steel

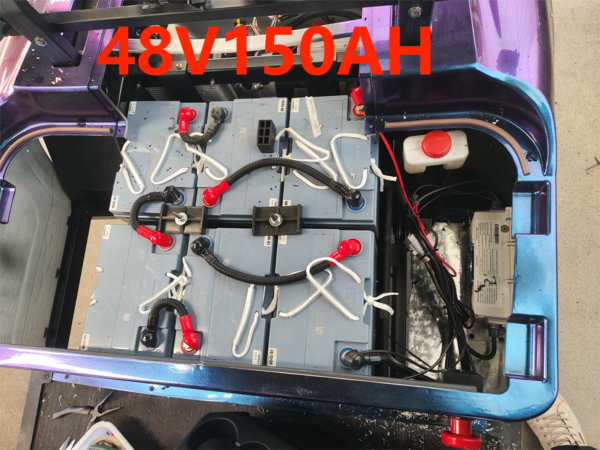

5	Battery	48V150AH 48V 150AH lead-acid battery (Maintenance-free gel battery)

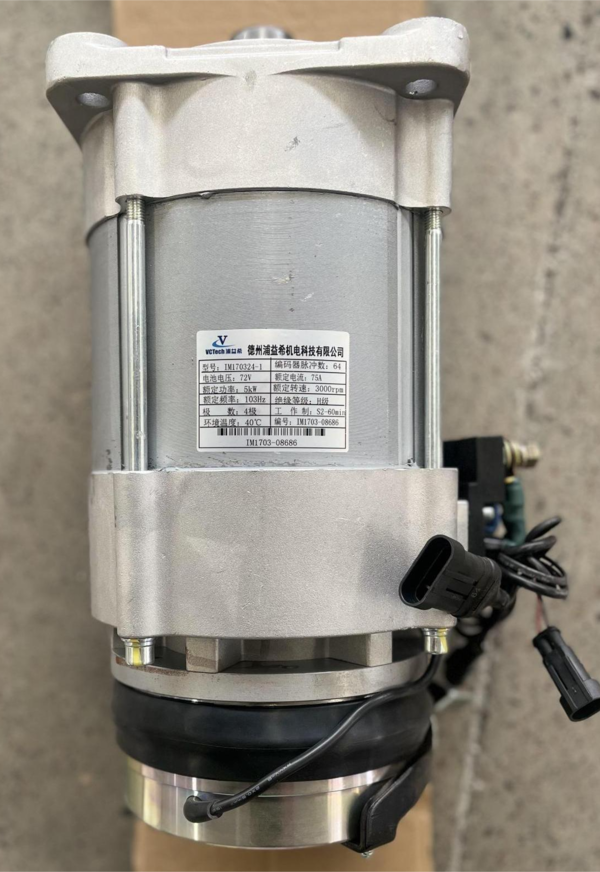

6	Motor	AC, Pu Yixi4KW AC,PUYIXI motor 4KW

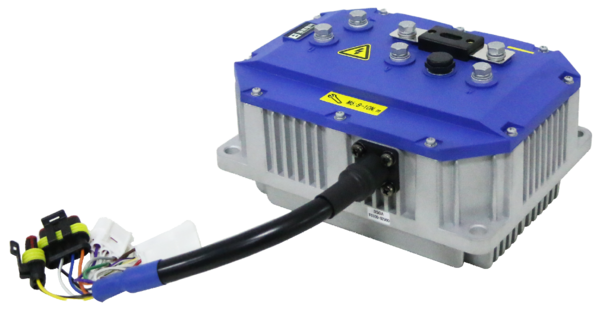

7	Controller	HERCULES Fully intelligent controller
8	Parameters
9	passenger capacity	2
10	Range (based on top speed)	70-80KM
11	charging time	8h
12	top speed	35km/h (Adjustable)
13	Maximum Climbing Degree	25°
14	sizes
15	Vehicle size (mm)	240012001780
16	Minimum ground clearance (mm)	120
17	Wheelbase (mm)	1680
18	Front wheelbase (mm)	720
19	Rear wheelbase (mm)	820
20	body
21	body	PP hard plastic front body + PP hard plastic rear body
22	ceiling	Engineering hard plastic
23	steering wheels	polyurethane foam

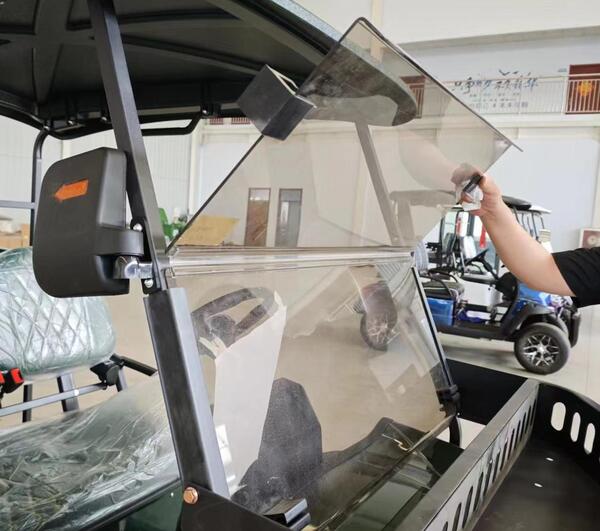

24	windshield	Foldable Acrylic
25	ceiling support	steel bracket
26	seat belt	Four-seat two-point seat belts

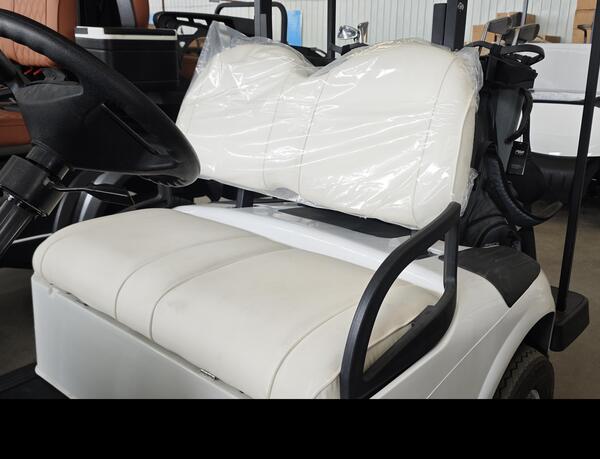

27	seat	artificial leather
28	(1) Backrest and seat cushion	Waterproof seat

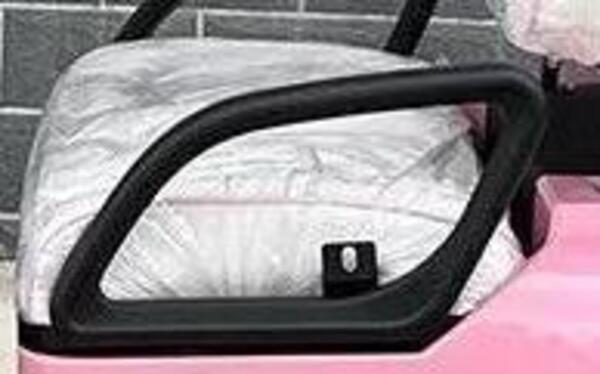

29	(2) Handrail	Black PP hard plastic
30	(3) Bottom shell	PP hard plastic
31	carpet	Rubber anti-slip floor mat
37	Coaster	4
38	wheel eyebrow	PP hard plastic
39	Electronic control system

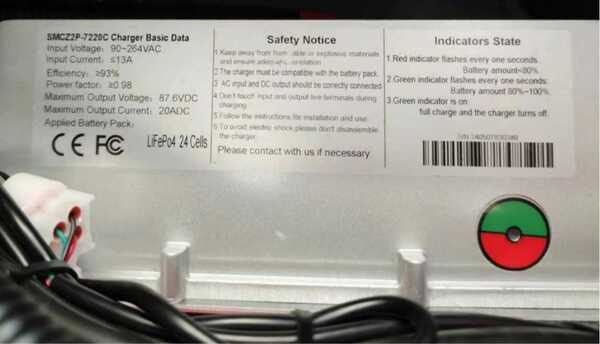

43	charger	SUMMIT Smart charger
44	driving steering system
45	vehicle steering system	Dual output rack and pinion steering gear
46	Brake system	Four-wheel disc brake
47	Suspension System	Front: MacPherson strut independent suspension Rear：corbel suspension
48	tires	8 inch rubber tires steel wheels
49	the color of car	All regular colors available website：www.ralcolor.com
